MS Bunkhouse

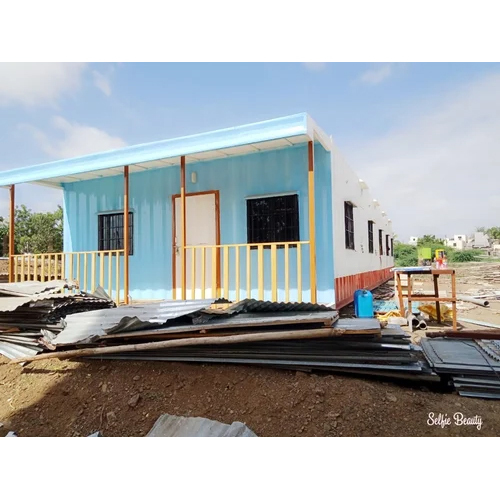

• Color
• Sky blue & white (customisable)

• Connection
• Bolt & Nut assembly

• Dimension (L*W*H)
• 10x12x8.5 feet (approx. 3x3.66x2.6 m)

• Door
• Other, Single MS Door

• Door Material
• Other, MS framed flush door

• Earthquake Intensity
• Up to zone 4 resistance

• Floor Load
• 250 kg/m

• Floor Material
• MS (Mild Steel) chequered plate

• Insulation
• Other, Polyurethane Foam

• Life Span
• 15+ years

• Material
• Other , Mild Steel (MS), PUF Panel, Aluminium

• Open Style
• Other, Sliding / Hinged

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 60 kg/m

• Roof Material
• Other, MS Sheet with waterproof coating

• Thickness Of Wall Panel
• 50 mm (PUF Insulated Panel)

• Use
• Other, Temporary Accommodation, Office, Site Cabin

• Wall Materials
• Other, MS Sheet, PUF insulated panels

• Window
• Other, 2 aluminium sliding windows

• Window Material
• Other, Aluminium frame glass window

• Window Style
• Other, Sliding

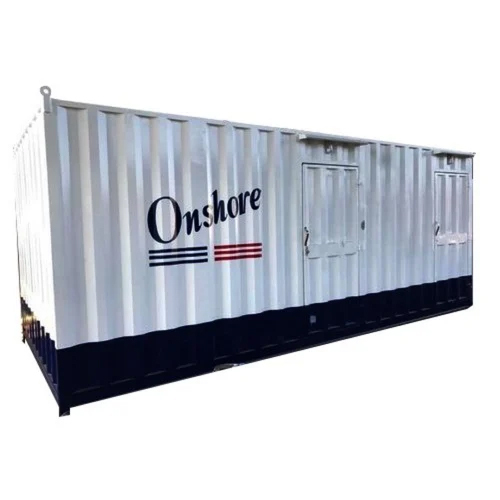

• Color
• Blue and White (Customizable)

• Connection
• Welded/ Bolted

• Dimension (L*W*H)
• 15 x 18 x 8.5 Feet

• Door
• Other, Single/Double Leaf Option

• Door Material
• Other, MS Frame with Flush Door

• Earthquake Intensity
• Up to Richter Scale 7

• Floor Load
• 250 kg/sq.m

• Floor Material
• MS Chequered Plate with Plywood and Vinyl Carpet

• Insulation
• Other, Polyurethane Foam (PUF), 40-50mm

• Life Span
• 15-20 Years

• Material
• Other , Mild Steel (MS)

• Open Style
• Other, Sliding/Outward

• Roof Dead Load
• 80 kg/m

• Roof Live Load
• 150 kg/m

• Roof Material
• Other, MS Sheet with Insulation

• Thickness Of Wall Panel
• 40 mm

• Use
• Other, Temporary Accommodation, Office, Site Cabin, Portable House

• Wall Materials
• Other, MS Sheet with PUF Panel Insulation

• Window
• Other, 2 to 4 Nos. as per requirement

• Window Material
• Other, Aluminum Sliding Window with Glass Pane

• Window Style
• Other, Sliding

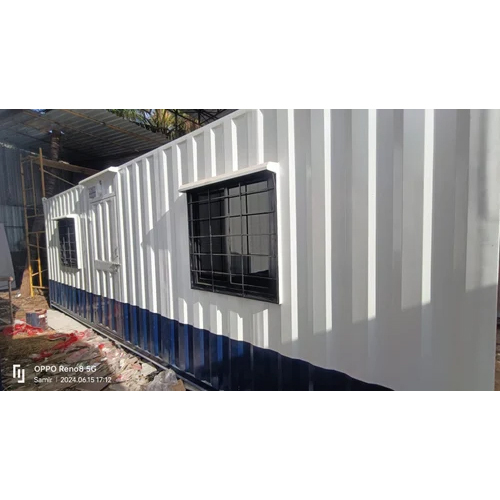

• Color
• Exterior Blue & White, Interior White

• Connection
• Bolted & Welded joints

• Dimension (L*W*H)
• 20 ft x 40 ft x 8.5 ft (Approx.)

• Door
• Other, Single/Double MS Door

• Door Material
• Other, MS Sheet fabricated door with locking arrangement

• Earthquake Intensity
• Designed for Zone II & III

• Floor Load
• 250 kg/m

• Floor Material
• 18 mm Marine Ply with PVC Vinyl flooring

• Insulation
• Other, 50 mm Rockwool

• Life Span
• 10-15 Years

• Material
• Other , Mild Steel (MS)

• Open Style
• Other, Sliding and Hinged

• Roof Dead Load
• 0.3 kN/m

• Roof Live Load
• 0.57 kN/m

• Roof Material
• Other, Corrugated MS Sheet with insulation

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Portable Accommodation / Office

• Wall Materials
• Other, MS Sheet with Rockwool Insulation

• Window
• Other, 2-4 depending on layout

• Window Material
• Other, Aluminum Sliding Windows with safety grill

• Window Style
• Other, Sliding

• Color
• Blue and white exterior finish

• Connection
• Bolted and welded joints as per structural drawing

• Dimension (L*W*H)
• 15x20x8.6 feet (L x W x H)

• Door
• Other, Single leaf, MS frame

• Door Material
• Other, MS sheet door with locking system

• Earthquake Intensity
• Designed for Zone III/IV as per IS codes

• Floor Load
• 200 kg/sq.m (approx)

• Floor Material
• MS chequered plate over steel frame

• Insulation
• Other, PUF/Glass wool (instrumental for temperature control)

• Life Span
• 10-15 years under normal use

• Material
• Other , Mild Steel (MS) frame and panels

• Open Style
• Other, Swing (door), Sliding (window)

• Roof Dead Load
• 0.55 KN/sq.m (approx)

• Roof Live Load
• 0.75 KN/sq.m (approx)

• Roof Material
• Other, Corrugated MS sheet with insulation

• Thickness Of Wall Panel
• 50 mm (approx)

• Use
• Other, Bunkhouse, office, accommodation, labor camp

• Wall Materials
• Other, MS panels with insulation

• Window
• Other, 2-4 per unit as per design

• Window Material
• Other, Aluminium or powder-coated steel with sliding glass

• Window Style
• Other, Sliding

• Color
• Custom/As per requirement (Image: Sky Blue with White Accents)

• Connection
• Welded and Bolted

• Dimension (L*W*H)
• 10 x 30 x 8.5 Feet

• Door
• Other, 1

• Door Material
• Other, MS Sheet with Wooden Frame

• Earthquake Intensity
• Designed for up to Zone 4

• Floor Load
• 350 kg/m2

• Floor Material
• 18 mm Marine Ply with Vinyl Flooring

• Insulation
• Other, Rockwool or Glasswool (Density: 48kg/m3)

• Life Span
• 10-15 Years

• Material
• Other , Mild Steel (MS)

• Open Style
• Other, Sliding and Hinged

• Roof Dead Load
• 35 kg/m2

• Roof Live Load
• 1.5 kN/m2

• Roof Material
• Other, MS Sheet, Corrugated

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Living, Storage

• Wall Materials
• Other, MS Sheet with Rockwool / Glasswool Insulation

• Window
• Other, 2

• Window Material
• Other, Aluminum Sliding Windows with Glass

• Window Style
• Other, Sliding

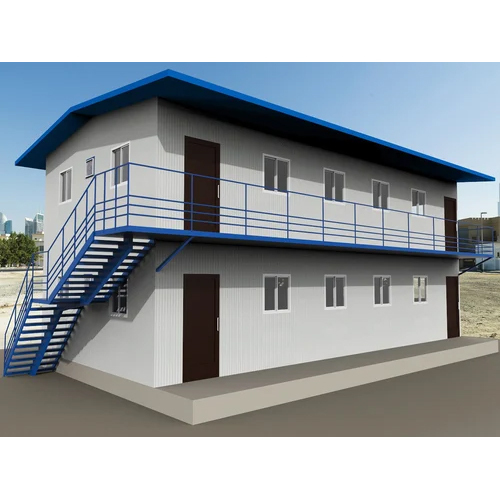

• Color
• Blue & White (customizable)

• Connection
• Bolted connections for easy dismantling & relocation

• Dimension (L*W*H)
• 18 x 25 feet x 8.5 feet (Approx. 5.5 x 7.6 x 2.6 meters)

• Door
• Other, Single/Double, lockable

• Door Material
• Other, MS Frame with flush door and lock

• Earthquake Intensity
• Designed to withstand up to Zone IV earthquake intensity

• Floor Load
• Approximately 250 kg/sq. m.

• Floor Material
• 18mm thick cement fiber board with vinyl/PVC carpet finish

• Insulation
• Other, Rock wool/PUF, 50 mm thick

• Life Span
• 10-15 Years

• Material
• Other , Mild Steel (MS) frame and panels

• Open Style
• Sliding

• Roof Dead Load
• 30 kg/sq. m.

• Roof Live Load
• 50 kg/sq. m.

• Roof Material
• Other, Corrugated MS sheet with insulation

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Accommodation, Temporary Housing, Storage

• Wall Materials
• Other, MS sheet (1.2mm thick) with rock wool/PUF insulation

• Window
• Other, 2-4 Units

• Window Material
• Other, Aluminum sliding window with glass

• Window Style
• Other, Sliding
