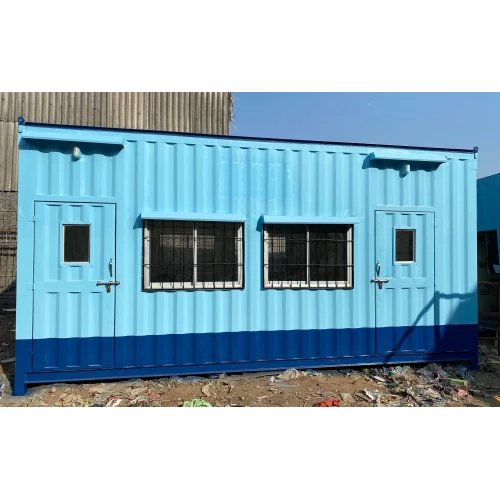

MS Portable Office Cabin

• Color
• Blue & White

• Dimension (L*W*H)
• 10x10x8.5 Feet

• Door
• Other, 1 No., MS Swing Door, Powder Coated

• Earthquake Intensity
• Designed for seismic zone IV

• Floor Load
• 200 kg/m

• Floor Material
• 18 mm Marine Ply with Vinyl Flooring

• Height
• 8.5 Feet

• Length
• 10 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Rectangular Hollow Section (RHS)

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• 110 kg/m

• Roof Live Load
• 50 kg/m

• Roof Material
• 18 gauge Corrugated MS Sheet with Insulation

• Thickness
• 1.2 mm (Outer MS Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Site Office, Temporary Workspace

• Wall
• MS Sheet Panel with Insulation

• Wind Resistance
• 120 km/h

• Window
• Other, 2 Nos, Powder Coated Sliding Windows

• Window Style
• Other, Sliding

• Color
• Grey & White

• Dimension (L*W*H)
• 20 x 10 x 8 feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 200 kg/m2

• Floor Material
• Vinyl Flooring over MS Base

• Height
• 8 feet

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Pipe Structure

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 0.40 KN/m2

• Roof Live Load
• 0.50 KN/m2

• Roof Material
• Corrugated MS Sheet

• Thickness
• 1.2 mm (Wall)

• Thickness Of Wall Panel
• 1.22 mm

• Use
• Other, Site Office, Security Cabin, Accommodation

• Wall
• 18 gauge MS Sheet

• Wind Resistance
• Up to 180 km/h

• Window
• Other, Aluminium Sliding Window

• Window Style
• Other, Sliding

• Color
• Blue and White

• Dimension (L*W*H)
• 20 x 8 x 8 Feet

• Door
• Other, MS Door with Internal Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 300 kg/m

• Floor Material
• 18mm Marine Ply with Vinyl Flooring

• Height
• 8 Feet

• Length
• 20 Feet

• Material
• Other, Mild Steel

• Pillar
• Mild Steel Frame

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 150 kg/m

• Roof Material
• Mild Steel Sheet with Insulation

• Thickness
• 40mm

• Thickness Of Wall Panel
• 40mm

• Use
• Other, Office, Site Office

• Wall
• MS Sheet with Insulation

• Wind Resistance
• 140 km/h

• Window
• Other, Aluminum Sliding Window

• Window Style
• Other, Rectangular

• Color
• Light Grey with Blue Accents

• Dimension (L*W*H)
• 40 ft x 20 ft x 9 ft (12.19 m x 6.10 m x 2.74 m)

• Door
• Other, MS Frame Door with Handle Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 2 kN/m

• Floor Material
• Waterproof Ply with Vinyl Flooring Finish

• Height
• 9 feet (2.74 m)

• Length
• 40 feet (12.19 m)

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Tube Frame

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• 0.75 kN/m

• Roof Live Load
• 0.50 kN/m

• Roof Material
• MS Sheet with Insulated Layer

• Thickness
• 1.2 mm to 2 mm (MS Panel)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Portable Office, Site Office, Temporary Workspace

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 180 km/h

• Window
• Other, Aluminum Sliding Windows

• Window Style
• Other, Sliding

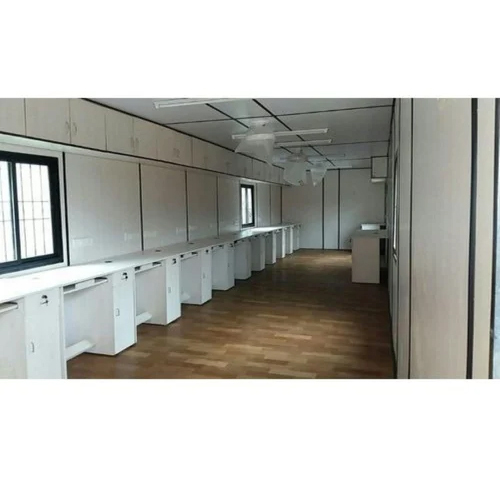

• Color
• Grey & Blue

• Dimension (L*W*H)
• 12 ft x 8 ft x 8 ft

• Door
• Other, Single Iron Door with Lock

• Earthquake Intensity
• Designed for Zone III

• Floor Load
• 200 Kg/m

• Floor Material
• 19 mm Marine Plywood with Vinyl Flooring

• Height
• 8 feet

• Length
• 12 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Pipe 80x80 mm

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• 50 Kg/m

• Roof Live Load
• 75 Kg/m

• Roof Material
• 1.2 mm MS Sheet with Weatherproof Paint

• Thickness
• 1.2 mm

• Thickness Of Wall Panel
• 1.2 mm

• Use
• Other, Office Cabin, Site Office

• Wall
• 18 Gauge MS Sheet

• Wind Resistance
• 120 Km/h

• Window
• Other, 2 Nos, PVC Sliding Window

• Window Style
• Other, Sliding

• Color
• Blue with White Corners (customizable)

• Dimension (L*W*H)
• 8 x 10 x 8 feet

• Door
• Other, 1 no. MS Flush Door with locking provision

• Earthquake Intensity
• Zone IV & V Compatible

• Floor Load
• 200 kg/m (approx.)

• Floor Material
• 18 mm Marine Ply with Vinyl Carpet Finish

• Height
• 8 feet (approx.)

• Length
• 10 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Angle/Box Section

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• 60 kg/m

• Roof Live Load
• 75 kg/m

• Roof Material
• Corrugated MS Sheet with Insulation

• Thickness
• 1.2 mm to 2.0 mm (MS Plate/Shell)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office Use

• Wall
• Sandwich Panel or Insulated MS Sheet

• Wind Resistance
• Designed for 180 km/h

• Window
• Other, 2 nos. Sliding Aluminium Windows

• Window Style
• Other, Sliding

• Color

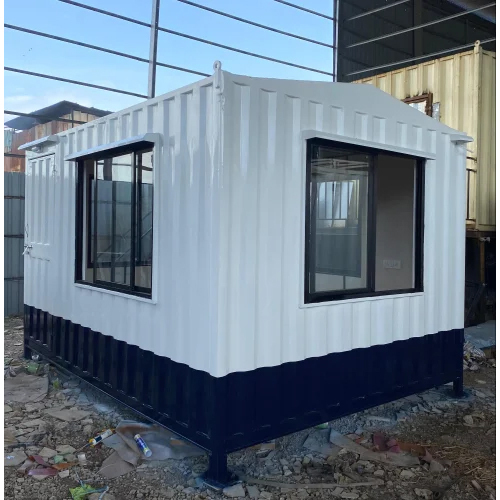

• White with Blue Borders (customizable)

• Dimension (L*W*H)
• 10 x 40 x 8.5 Feet

• Door
• Other, MS Door with Lockable Mechanism

• Earthquake Intensity
• Designed for Seismic Zone IV

• Floor Load
• Up to 450 kg/m

• Floor Material
• Vinyl/Marine Ply over MS Structure

• Height
• 8.5 Feet

• Length
• 40 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Tube Frames

• Product Type
• MS Portable Office Cabin

• Roof Dead Load
• Up to 0.60 kN/m

• Roof Live Load
• Up to 1.5 kN/m

• Roof Material
• Corrugated MS Sheet with Insulation

• Thickness
• 1.2 mm (MS Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Site Office, Temporary Office, Security Cabin

• Wall
• Sandwich Panel/Insulated MS Panels

• Wind Resistance
• Up to 120 km/h

• Window
• Other, Aluminum Sliding Windows

• Window Style
• Other, Sliding

• Color
• White and Blue (customizable)

• Dimension (L*W*H)
• 40 ft x 10 ft x 8.5 ft (12.19 m x 3.05 m x 2.6 m)

• Door
• Other, MS Door with Lock, Flush Type

• Earthquake Intensity
• Seismic Zone IV compliant

• Floor Load
• 350 kg/m

• Floor Material
• Marine Plywood with Vinyl Covering

• Height
• 8.5 Feet (approx 2.6 Meter)

• Length
• 40 Feet (12.19 Meter)

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Pipe Structure

• Product Type
• MS Modular Portable Office Cabin

• Roof Dead Load
• Approximately 0.50 kN/m

• Roof Live Load
• 2.0 kN/m

• Roof Material
• Pre-Coated GI Sheet

• Thickness
• 1.2 mm to 2 mm (MS Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office Cabin, Temporary Workspace

• Wall
• Insulated Sandwich Panel/MS Sheet

• Wind Resistance
• Up to 180 km/h

• Window
• Other, Sliding Aluminium Windows

• Window Style
• Other, Rectangular, Horizontal Slide

• Color
• Blue & White

• Dimension (L*W*H)
• 8 x 20 x 8.5 Feet

• Door
• Other, MS Door with locking arrangement

• Earthquake Intensity
• Zone IV Compliant

• Floor Load
• 250 kg/sq.mtr

• Floor Material
• Waterproof Ply with Vinyl Flooring

• Height
• 8.5 Feet

• Length
• 20 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• Mild Steel (MS) box section pillars

• Product Type
• MS Modular Portable Office Cabin

• Roof Dead Load
• 15 kg/sq.mtr

• Roof Live Load
• 75 kg/sq.mtr

• Roof Material
• Profiled MS Sheet with insulation

• Thickness
• 1.2 mm (MS Sheet Thickness)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office Cabin

• Wall
• Sandwich Panel - Both sides MS Sheet with insulation

• Wind Resistance
• 150 km/h

• Window
• Other, Sliding aluminium windows

• Window Style
• Other, Horizontal sliding

• Color
• Blue and White

• Dimension (L*W*H)
• 15x20x8 Feet

• Door
• Other, Flush Door with MS Frame

• Earthquake Intensity
• Zone IV Compatible

• Floor Load
• 350 kg/m

• Floor Material
• Laminated Plywood with MS Frame

• Height
• 8 Feet

• Length
• 20 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• Structural MS Pipes

• Product Type
• MS Modular Portable Office Cabin

• Roof Dead Load
• 35 kg/m

• Roof Live Load
• 75 kg/m

• Roof Material
• Galvanized MS Sheet

• Thickness
• 50 mm

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Office, Temporary Workspace

• Wall
• Sandwich Panel with MS Sheet

• Wind Resistance
• 120 km/h

• Window
• Other, Aluminum Sliding Windows

• Window Style
• Other, Contemporary

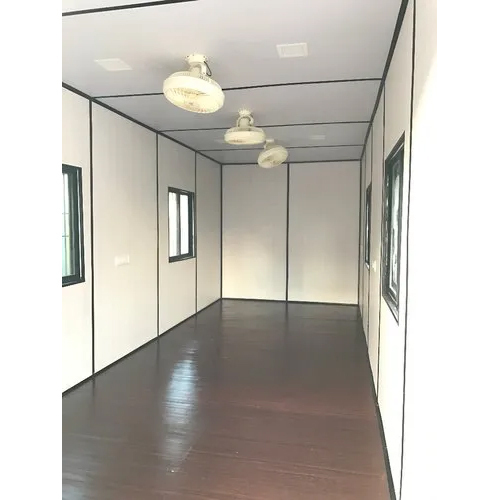

• Color
• Blue & White

• Dimension (L*W*H)
• 10 x 20 x 8.5 feet

• Door
• Other, Flush Door with Frame

• Earthquake Intensity
• Zone IV (IS 1893)

• Floor Load
• 200 kg/m2

• Floor Material
• 18 mm Cement Board with Vinyl Flooring

• Height
• 8.5 feet (approx.)

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• 60 mm x 60 mm MS Square Pipe

• Product Type
• MS Porta Cabin

• Roof Dead Load
• 60 kg/m2

• Roof Live Load
• 120 kg/m2

• Roof Material
• MS Truss with GI Sheet

• Thickness
• 1.2 mm MS Sheet

• Thickness Of Wall Panel
• 50 mm including insulation

• Use
• Other, Temporary Office, Accommodation, Security Cabin

• Wall
• MS Sheet with Insulation

• Wind Resistance
• 180 km/h

• Window
• Other, 2 Nos. Sliding Aluminum Windows

• Window Style
• Other, Sliding

• Color
• White and Blue

• Dimension (L*W*H)
• 20 ft x 10 ft x 8 ft

• Door
• Other, MS Door with locking system

• Earthquake Intensity
• Designed to withstand Zone IV seismic conditions

• Floor Load
• 350 kg/m2

• Floor Material
• Wooden board with vinyl finish

• Height
• 8 feet

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• Mild Steel (MS) structural pillar

• Product Type
• MS Porta Cabin

• Roof Dead Load
• 30 kg/m2

• Roof Live Load
• 75 kg/m2

• Roof Material
• Insulated MS sheet

• Thickness
• 2 mm (external MS sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site accommodation, Security cabin

• Wall
• MS Sheet with insulation

• Wind Resistance
• Up to 120 km/h

• Window
• Other, Aluminum sliding windows

• Window Style
• Other, Horizontal

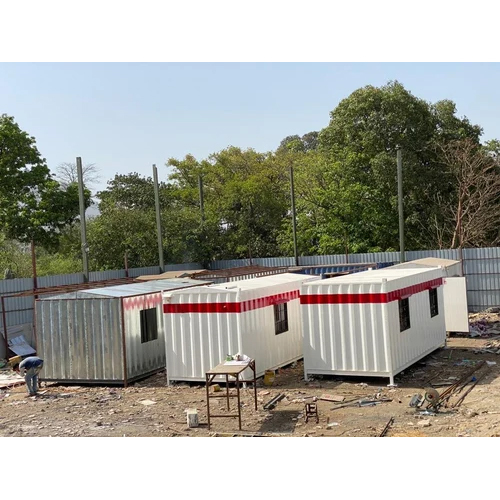

• Color
• Customized (Standard-White/Grey/Blue)

• Dimension (L*W*H)
• 8x20x8.5 feet (2438x6096x2590 mm)

• Door
• Other, Single Steel Door, 2100 mm x 900 mm

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• Uniformly distributed, up to 350 kg/m2

• Floor Material
• 18 mm Marine Ply with PVC Carpet

• Height
• 8.5 feet (approx 2590 mm)

• Length
• 20 feet (6096 mm)

• Material
• Other, Mild Steel

• Pillar
• MS Hollow Section

• Product Type
• MS Cargo Office Container

• Roof Dead Load
• 35 kg/m

• Roof Live Load
• 75 kg/m

• Roof Material
• MS Sheet with weather-proof coating

• Thickness
• Overall wall thickness 51 mm

• Thickness Of Wall Panel
• 1 mm MS Sheet + 50 mm PUF insulation

• Use
• Other, Portable Office / Cargo Storage

• Wall
• MS Sheet with insulation core

• Wind Resistance
• 120 km/hr

• Window
• Other, 2

• Window Style
• Other, Sliding

• Color
• Light Blue and White

• Dimension (L*W*H)
• 10 ft x 24 ft x 8 ft (3.05 m x 7.32 m x 2.44 m)

• Door
• Other, One MS flush door

• Earthquake Intensity
• Suitable for seismic zone 4

• Floor Load
• 200 kg/m2

• Floor Material
• 18 mm Cement Board with Vinyl Carpet

• Height
• 8 feet (approx. 2.44 m)

• Length
• 24 feet (7.32 m)

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Tube Structure

• Product Type
• MS Prefabricated Office Cabin

• Roof Dead Load
• 0.7-1.2 kN/sqm

• Roof Live Load
• 0.5-1.0 kN/sqm

• Roof Material
• Corrugated Galvanized Iron Sheets

• Thickness
• 1.2 mm (MS Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office/Temporary Workspace

• Wall
• Sandwich Panel

• Wind Resistance
• Resistant up to 150 km/h

• Window
• Other, 2 units sliding aluminum windows

• Window Style
• Other, Sliding

• Color
• Off White & Blue

• Dimension (L*W*H)
• 10 x 10 x 8 feet

• Door
• Other, 1 No. Swing Type

• Earthquake Intensity
• Zone III-IV Compliant

• Floor Load
• 200 Kg/m

• Floor Material
• 18 mm Marine Ply on MS Frame

• Height
• 8 feet (approx)

• Length
• 10 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS ISMB Sections

• Product Type
• MS Porta Cabin

• Roof Dead Load
• 50 Kg/m

• Roof Live Load
• 75 Kg/m

• Roof Material
• MS Sheet with Insulation

• Thickness
• 1.2 mm (Wall Panel)

• Thickness Of Wall Panel
• 1.2 mm 1.5 mm

• Use
• Other, Office, Security Cabin, Temporary Accommodation

• Wall
• MS Sheet with Insulation

• Wind Resistance
• 130 km/h

• Window
• Other, 2 Nos. Sliding Windows

• Window Style
• Other, Aluminum Sliding

• Color
• White with Blue Trim (Customizable)

• Dimension (L*W*H)
• 10 x 15 x 8 Feet

• Door
• Other, MS Door (Standard: 1 No)

• Earthquake Intensity
• Up to Seismic Zone IV

• Floor Load
• 200 kg/m

• Floor Material
• 18mm Cement Board With Vinyl Finish

• Height
• 8 Feet (Internal Clear Height)

• Length
• 15 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Rectangular Hollow Sections

• Product Type
• MS Porta Cabin

• Roof Dead Load
• 0.60 kN/m

• Roof Live Load
• 0.75 kN/m

• Roof Material
• Pre-coated GI Sheet

• Thickness
• 1.2 mm (MS Sheet Thickness)

• Thickness Of Wall Panel
• 50mm

• Use
• Other, Office, Security Cabin, Temporary Workspace

• Wall
• Insulated Sandwich Panels

• Wind Resistance
• 180 km/h

• Window
• Other, 2 Nos (Sliding Glass Windows)

• Window Style
• Other, Sliding

• Color
• White & Blue (Customizable)

• Dimension (L*W*H)
• 12x15x8 Feet (3660x4572x2440 mm)

• Door
• Other, 1 Unit Steel Door (Flush Type)

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 200250 kg/m2

• Floor Material
• 18 mm Waterproof Ply with Vinyl Flooring

• Height
• 8 Feet (approx. 2440 mm)

• Length
• 15 Feet (approx. 4572 mm)

• Material
• Other, Mild Steel (MS)

• Pillar
• Square MS Tube 75x75 mm

• Product Type
• MS Modular Portable Office Cabin

• Roof Dead Load
• 0.50 kN/m2

• Roof Live Load
• 0.57 kN/m2

• Roof Material
• Corrugated MS Sheet with Insulation

• Thickness
• 1.2 mm (external MS sheet)

• Thickness Of Wall Panel
• 40 mm

• Use
• Office

• Wall
• MS Sheet with Insulation

• Wind Resistance
• 120130 km/h

• Window
• Other, 2 Units Aluminum Sliding Windows

• Window Style
• Other, Sliding

• Color
• Light Blue & White

• Dimension (L*W*H)
• 12 x 20 x 8.5 feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 200 kg/m

• Floor Material
• Marine Ply with Vinyl Flooring

• Height
• 8.5 feet

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Structural Pillar

• Product Type
• MS Modular Portable Office Cabin

• Roof Dead Load
• 150 kg/m

• Roof Live Load
• 50 kg/m

• Roof Material
• MS Sheet with Insulation

• Thickness
• 2 mm (External MS sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Office

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• Designed to withstand up to 120 km/h

• Window
• Other, Aluminum Sliding Window

• Window Style
• Other, Rectangular

• Color
• Client s choice / Custom colour

• Dimension (L*W*H)
• 10'x20'x8'-6" Foot (ft)

• Door
• Steel

• Earthquake Intensity
• Seismic resistant for low-intensity earthquakes Microns

• Floor Load
• 2000 Kilograms (kg)

• Floor Material
• Base Frame: M.S. Square Pipe / I-beam frame Floor Sheet: 18mm Cement Sheet Top Layer / Finish: 1mm Vinyl Carpet

• Height
• 8.6 Foot (ft)

• Length
• 20 Foot (ft)

• Material
• Other, Steel

• Pillar
• M.S. Square Pipe

• Product Type
• M.S Portable Office Cabin

• Roof Dead Load
• 400kg

• Roof Live Load
• 4-6 Ton

• Roof Material
• G.I Sheet + Glass Wool + MDF, 6" Thick

• Thickness
• 6 Inch

• Thickness Of Wall Panel
• 6 Inch

• Use
• Office, House, Other

• Wall
• G.I Sheet + Glass Wool + MDF, 6" Thick

• Wind Resistance
• Moderate wind resistant (anchoring recommended for high wind)

• Window
• Alloy Aluminum

• Window Style
• Sliding Window
