Modular Steel Portable Cabin

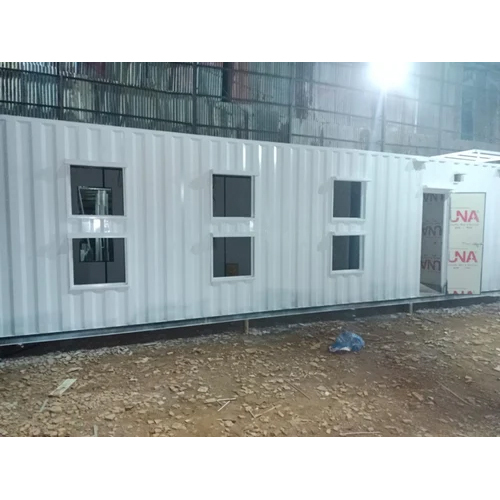

• Color
• Light Grey & White

• Dimension (L*W*H)
• 40 ft x 20 ft x 9 ft

• Door
• Other, Flush Door with SS fittings

• Earthquake Intensity
• Zone III compliant

• Floor Load
• 2.5 kN/m2

• Floor Material
• Heavy-duty marine ply with vinyl finishing

• Height
• 9 feet (2.75 m)

• Length
• 40 feet (12.2 m)

• Material
• Other, Galvanized Steel

• Pillar
• Structural steel column

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 0.5 kN/m2

• Roof Live Load
• 1.5 kN/m2

• Roof Material
• Corrugated GI Sheet

• Thickness
• Steel Sheet: 1.20 mm

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Accommodation, Storage

• Wall
• Insulated sandwich panel

• Wind Resistance
• Designed to withstand wind speeds up to 120 km/h

• Window
• Other, Aluminum sliding windows

• Window Style
• Other, Rectangular

• Color
• White with Blue Edges

• Dimension (L*W*H)
• 18 x 15 x 8.5 Feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Designed for Zone IV & V

• Floor Load
• 3.5 KN/m

• Floor Material
• Vinyl Flooring over MS Sheet Base

• Height
• 8.5 Feet

• Length
• 18 Feet

• Material
• Other, Mild Steel (MS) Frame with PUF Panels

• Pillar
• Heavy-Duty Steel Pillars

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 0.35 KN/m

• Roof Live Load
• 0.75 KN/m

• Roof Material
• Pre-Coated Galvanized Iron Sheet

• Thickness
• 1.2 mm Thickness Steel Sheets

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Security Cabin, Site Office

• Wall
• Insulated PU Sandwich Panel

• Wind Resistance
• Up to 180 km/h

• Window
• Other, Aluminum Sliding Windows

• Window Style
• Other, Sliding

• Color
• White & Blue exterior finish

• Dimension (L*W*H)
• 12 x 18 x 9 Feet

• Door
• Other, Steel Door with Secure Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• Suitable for 350 kg/m

• Floor Material
• 18mm Marine Ply finished with Vinyl

• Height
• 9 Feet (Internal Clearance)

• Length
• 18 Feet

• Material
• Other, High-grade Steel Frame, PUF Panel

• Pillar
• Mild Steel (MS) Structural Pillars

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 40 kg/m

• Roof Live Load
• 60 kg/m

• Roof Material
• Galvalume Sheet with Rockwool Insulation

• Thickness
• Panel thickness 50 mm

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Accommodation, Security Cabin, Store

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• Rated up to 150 kmph

• Window
• Other, Aluminum sliding windows

• Window Style
• Other, Rectangular

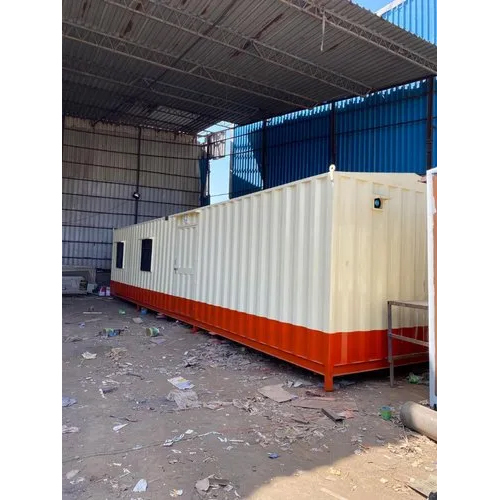

• Color
• White and Blue

• Dimension (L*W*H)
• 40x10x9.5 Feet

• Door
• Other, Steel door with lock

• Earthquake Intensity
• Zone IV compliant

• Floor Load
• 250 kg/m

• Floor Material
• 18mm marine plywood over steel frame

• Height
• 9.5 Feet

• Length
• 40 Feet

• Material
• Other, Mild Steel

• Pillar
• Standard steel pillar

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 15 kg/m

• Roof Live Load
• 50 kg/m

• Roof Material
• Corrugated steel sheet

• Thickness
• 1.2 mm steel frame

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Store, Security Cabin

• Wall
• Sandwich panel walls

• Wind Resistance
• 140 km/h

• Window
• Other, 2

• Window Style
• Other, Sliding aluminum windows with glass

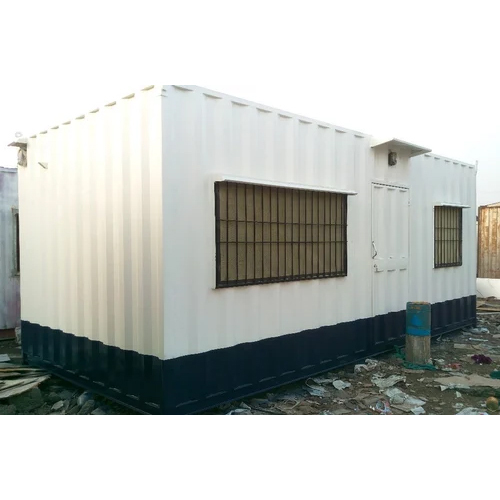

• Color
• Off White with Blue Trim

• Dimension (L*W*H)
• 10 ft x 20 ft x 8 ft

• Door
• Other, Flush Door with MS Frame

• Earthquake Intensity
• Zone IV compliant

• Floor Load
• 250 kg/m2

• Floor Material
• 18 mm Marine Plywood with Vinyl Flooring

• Height
• 8 feet

• Length
• 20 feet

• Material
• Other, Mild Steel

• Pillar
• MS Square Tubular Section

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 50 kg/m2

• Roof Live Load
• 100 kg/m2

• Roof Material
• Corrugated Galvanized Steel Sheet

• Thickness
• 1.2 mm (MS sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Cabin, Guard Room, Accommodation

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 180 km/h

• Window
• Other, 2

• Window Style
• Other, Sliding

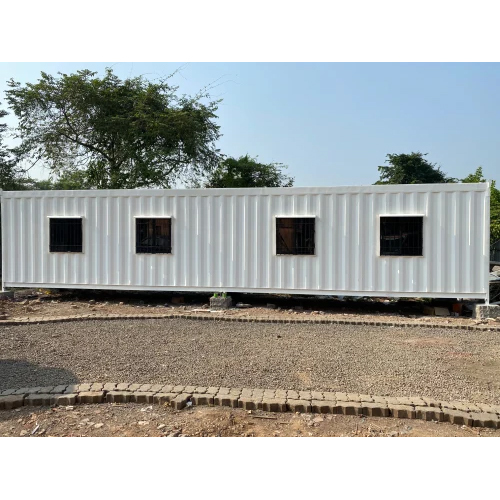

• Color
• White/Grey with Blue Trim

• Dimension (L*W*H)
• 10 x 20 x 8 feet (3.05 x 6.1 x 2.44 m)

• Door
• Other, 1 (Steel, Hinged)

• Earthquake Intensity
• Zone IV Compatible

• Floor Load
• 200 kg/m

• Floor Material
• 18 mm Cement Fibre Board with Vinyl Flooring

• Height
• 8 feet (2.44 m)

• Length
• 20 feet (6.1 m)

• Material
• Steel

• Pillar
• Mild Steel (MS) Tube Structural Frame

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 100 kg/m

• Roof Material
• Corrugated Steel Sheet with Insulation

• Thickness
• 1.2 mm-2 mm (Steel Frame & Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Security Cabin, Site Office, Temporary Shelter

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 180 km/hr

• Window
• Other, 2 (Sliding, Aluminium Frame)

• Window Style
• Other, Sliding

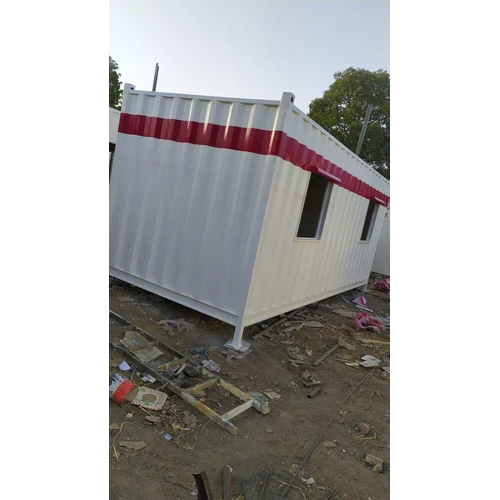

• Color
• White, Blue, As Per Requirement

• Dimension (L*W*H)
• 30 x 10 x 8.5 Feet

• Door
• Other, Heavy Gauge Steel Door with Powder Coating

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 300 kg/m2

• Floor Material
• 18 mm Marine Ply with Vinyl Finish

• Height
• 8.5 Feet

• Length
• 30 Feet

• Material
• Steel

• Pillar
• 3 mm Thick Mild Steel Section

• Product Type
• Modular Steel Portable Cabin

• Roof Dead Load
• 80 kg/m2

• Roof Live Load
• 150 kg/m2

• Roof Material
• Corrugated Steel Sheet

• Thickness
• 3 mm (Structural Frames), 50 mm (Wall Panel)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Cabin, Guard Room, Storage

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 120 km/h

• Window
• Other, 2 Sliding Aluminum Windows

• Window Style
• Other, Sliding
