20X40 Feet MS Bunkhouse

Get a Price/Quote

Product Details:

Insulation 50 mm Rockwool
Door Material MS Sheet fabricated door with locking arrangement
Dimension (L*W*H) 20 ft x 40 ft x 8.5 ft (Approx.)
Life Span 10-15 Years
Open Style Sliding and Hinged
Wall Materials MS Sheet with Rockwool Insulation
Connection Bolted & Welded joints
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

20X40 Feet MS Bunkhouse Product Specifications

Connection Bolted & Welded joints
Insulation 50 mm Rockwool
Door Single/Double MS Door
Use Portable Accommodation / Office
Material Mild Steel (MS)
Window 2-4 depending on layout
Door Material MS Sheet fabricated door with locking arrangement
Roof Dead Load 0.3 kN/m
Color Exterior Blue & White, Interior White
Dimension (L*W*H) 20 ft x 40 ft x 8.5 ft (Approx.)
Roof Material Corrugated MS Sheet with insulation
Earthquake Intensity Designed for Zone II & III
Roof Live Load 0.57 kN/m
Thickness Of Wall Panel 50 mm
Window Material Aluminum Sliding Windows with safety grill
Floor Load 250 kg/m
Floor Material 18 mm Marine Ply with PVC Vinyl flooring
Open Style Sliding and Hinged
Wall Materials MS Sheet with Rockwool Insulation
Window Style Sliding
Life Span 10-15 Years

Electric Fittings LED Lights, Switches, Sockets with wiring
Electrical Load Up to 6 KW as per customer requirement
Frame Structure Robust steel structural frame
Temperature Range Suitable for -10°C to +50°C climatic conditions
Air Conditioning Pre-installed A/C Cut-outs
Waterproof Roof and wall joints sealed for total waterproofing
Ceiling Type Pre-painted GI Sheet/Board
Surface Finish Epoxy Paint for Anti-Corrosion
Ventilation Air Vents Provided
Fire Resistance Rockwool insulated panels provide fire retardancy
Assembly Time Ready to use; installation in 1-2 days
Movability Forklift pockets and lifting hooks for transportation
Sanitary Fittings Provision for Washroom (optional as per requirement)
Panel Joint Tongue and groove joint system

Product Description

Embrace illustrious quality and unmatched value with the 20X40 Feet MS Bunkhouse-a hot-selling portable accommodation and office solution trusted by venerable clients across India. Born of a redoubtable mild steel frame, this bunkhouse comes equipped with cutting-edge electric and sanitary fittings, fortified insulation, and robust anti-corrosive epoxy paints for longevity. Enjoy pre-installed A/C cut-outs, waterproof joints, and fire-resistant panels. Engineered for rapid assembly and outstanding safety in harsh conditions, this premium product redefines mobile workspace comfort. Buy now from our reputed network of distributors, manufacturers, suppliers, and traders.

Outstanding Advantages & Versatile Applications

The 20X40 Feet MS Bunkhouse offers abundant advantages such as rapid installation, superior safety, and enduring resilience. Key features include sturdy steel structure, efficient rockwool insulation, and flexible electrical capacity. Its applications span construction sites, remote offices, disaster relief camps, and portable accommodation. Designed for harsh climates and seismic zones, its high portability ensures adaptability to evolving needs, making it a dependable solution for both commercial and industrial environments.

Sample Availability & Order Processing Benefits

Experience our professional order processing and attractive offers on the illustrious 20X40 Feet MS Bunkhouse. Samples are readily available for inspection, ensuring buyers' satisfaction before bulk purchase. With a lowest price guarantee, competitive FOB port options, and a transparent sample policy, clients can make prudent purchasing decisions. Our swift response and meticulous shipment handling reaffirm our commitment to delivering value and reliability every time.

FAQ's of 20X40 Feet MS Bunkhouse:

Q: How quickly can the 20X40 Feet MS Bunkhouse be installed on-site?

A: The bunkhouse is ready to use and can typically be installed within 1-2 days, which ensures minimal disruption and quick occupancy at your site.

Q: What are the benefits of the rockwool insulated panels used in this bunkhouse?

A: Rockwool insulated panels offer fire resistance, superior thermal insulation, and enhanced noise reduction, providing a safer and more comfortable environment inside the bunkhouse.

Q: Where can the 20X40 Feet MS Bunkhouse be used?

A: This bunkhouse is ideal for diverse applications, including portable accommodation, site offices, disaster relief camps, and remote project locations that require robust and movable infrastructure.

Q: What is the process for ordering a sample of the MS Bunkhouse?

A: To order a sample, simply contact our team with your requirements. We provide transparent sample policies and ensure prompt processing to help you evaluate the product before making a larger commitment.

Q: How does the bunkhouse withstand extreme climates and seismic activity?

A: The bunkhouse is engineered for -10C to +50C temperatures and is designed for earthquake Zones II & III, thanks to its fortified MS frame and quality insulation materials.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'MS Bunkhouse' category

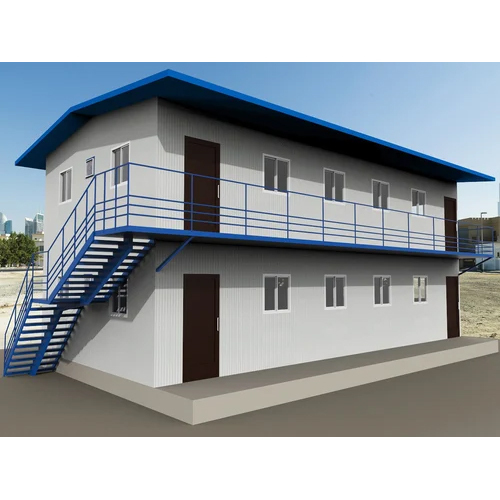

18x25 Feet MS Bunkhouse Color : Blue & White (customizable) Dimension (L*W*H) : 18 x 25 feet x 8.5 feet (Approx. 5.5 x 7.6 x 2.6 meters) Roof Dead Load : 30 kg/sq. m. Earthquake Intensity : Designed to withstand up to Zone IV earthquake intensity Roof Material : Other, Corrugated MS sheet with insulation Door : Other, Single/Double, lockable Insulation : Other, Rock wool/PUF, 50 mm thick Connection : Bolted connections for easy dismantling & relocation Door Material : Other, MS Frame with flush door and lock Window : Other, 24 Units Material : Other , Mild Steel (MS) frame and panels Use : Other, Office, Site Accommodation, Temporary Housing, Storage Window Style : Other, Sliding Life Span : 1015 Years Floor Material : 18mm thick cement fiber board with vinyl/PVC carpet finish Floor Load : Approximately 250 kg/sq. m. Wall Materials : Other, MS sheet (1.2mm thick) with rock wool/PUF insulation Open Style : Sliding Roof Live Load : 50 kg/sq. m. Window Material : Other, Aluminum sliding window with glass Thickness Of Wall Panel : 50 mm
