MS Portable Cabin

• Color
• As shown in image (Blue and White)

• Dimension (L*W*H)
• 12 x 20 x 8 feet

• Door
• Other, MS Door

• Earthquake Intensity
• Designed for Zone IV

• Floor Load
• 300 kg/m

• Floor Material
• 18mm Marine Plywood with Vinyl Covering

• Height
• 8 feet

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS fabricated pillar

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 40 kg/m

• Roof Live Load
• 150 kg/m

• Roof Material
• MS Sheet with Weatherproof coating

• Thickness
• 1.2 mm

• Thickness Of Wall Panel
• 1.2 mm

• Use
• Other, Temporary Accommodation/Office/Guard Room

• Wall
• Corrugated MS sheet

• Wind Resistance
• 130 km/hr

• Window
• Other, 2 Windows

• Window Style
• Other, Sliding type

• Color
• Grey-White

• Dimension (L*W*H)
• 18 x 30 x 8.5 Feet

• Door
• Other, MS Panel Door

• Earthquake Intensity
• Zone 4 Compliant

• Floor Load
• 250 kg/m

• Floor Material
• Heavy-duty Plywood with Vinyl Flooring

• Height
• 8.5 Feet

• Length
• 30 Feet

• Material
• Other, Mild Steel

• Pillar
• MS Steel Pillars

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 75 kg/m

• Roof Material
• MS Sheet with Insulation

• Thickness
• 2 mm (Base Frame), 1.2 mm (Wall Panel)

• Thickness Of Wall Panel
• 45 mm

• Use
• Other, Site Office, Temporary Accommodation

• Wall
• MS Corrugated Sheet

• Wind Resistance
• Up to 150 km/h

• Window
• Other, Glass Sliding Windows

• Window Style
• Other, Horizontal Sliding

• Color
• Blue & White

• Dimension (L*W*H)
• 12x15x8 feet

• Door
• Other, One MS Door

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 250 kg/m

• Floor Material
• Antiskid Vinyl Flooring

• Height
• 8 feet

• Length
• 15 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• 80mm x 80mm MS square pipe

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 100 kg/m

• Roof Live Load
• 50 kg/m

• Roof Material
• MS Sheet with Water Proofing

• Thickness
• 1.2 mm (MS sheet thickness)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Security Cabin, Store, Site Office

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• Up to 160 km/h

• Window
• Other, 2 nos. Sliding Aluminum Windows

• Window Style
• Other, Sliding

• Color
• Blue & White

• Dimension (L*W*H)
• 10x20x8 feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 250 kg/m

• Floor Material
• Marine Plywood with Vinyl Flooring

• Height
• 8 feet

• Length
• 20 feet

• Material
• Other, Mild Steel

• Pillar
• MS Square Tube 75x75 mm

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 75 kg/m

• Roof Material
• Corrugated MS Sheet with Insulation

• Thickness
• 2 mm (MS sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Guard Cabin, Accommodation

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 180 km/h

• Window
• Other, 2

• Window Style
• Other, Sliding

• Color
• White & Blue (customizable)

• Dimension (L*W*H)
• 10 x 20 x 8.5 Feet (3.05 x 6.10 x 2.60 m)

• Door
• Other, Flush Door with MS Frame - 1 No

• Earthquake Intensity
• Designed for Zone III-IV

• Floor Load
• 250 kg/m

• Floor Material
• 18 mm Cement Board with Vinyl Flooring

• Height
• 8.5 feet (Approx. 2.6 m)

• Length
• 20 feet (6.096 m)

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Tube (75mm x 75mm)

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 60 kg/m

• Roof Live Load
• 90 kg/m

• Roof Material
• Galvanized Sheet with EPS Insulation

• Thickness
• MS Sheet 1.2 mm (Outer), 8 mm Plywood (Inner)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Office, Security Cabin, Living Cabin

• Wall
• Insulated Sandwich Panel / MS Sheet

• Wind Resistance
• 120 km/h

• Window
• Other, 2 Nos Aluminium Sliding Windows

• Window Style
• Other, Sliding

• Color
• Blue & White (Standard) or Customizable

• Dimension (L*W*H)
• 15 x 30 x 8.5 Feet

• Door
• Other, 1 No. MS Door (Flush/Panel type)

• Earthquake Intensity
• Designed for Zone III

• Floor Load
• 350 kg/sq.m.

• Floor Material
• 18 mm Marine Ply with Vinyl Flooring

• Height
• 8.5 Feet (External)

• Length
• 30 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Tube Section

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 80 kg/sq.m.

• Roof Live Load
• 150 kg/sq.m.

• Roof Material
• MS Sheet with Insulation

• Thickness
• 1.2 mm (Sheet Thickness)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Site Accommodation, Guard Room

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• Up to 120 km/h

• Window
• Other, 2 Nos. Sliding Windows

• Window Style
• Other, Aluminum Frame Sliding

• Color
• White with Blue Borders

• Dimension (L*W*H)
• 20x30x8.5 Feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 350 kg/m

• Floor Material
• 18 mm Cement Board with Vinyl Covering

• Height
• 8.5 Feet

• Length
• 30 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Steel Square Pipe

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 50 kg/m

• Roof Live Load
• 150 kg/m

• Roof Material
• Corrugated GI Sheet with Insulation

• Thickness
• 1.2 mm for Main Structure

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Security Cabin, Temporary Accommodation

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 120 kmph

• Window
• Other, Sliding Aluminium Windows

• Window Style
• Other, Sliding

• Color
• Sky Blue with White Accents

• Dimension (L*W*H)
• 40 x 10 x 8 Feet

• Door
• Other, Single (Steel) Door

• Earthquake Intensity
• Seismic Zone III compliant

• Floor Load
• 350 kg/m

• Floor Material
• 18mm Marine Ply with Vinyl Flooring

• Height
• 8 Feet (Internal Clear Height)

• Length
• 40 Feet

• Material
• Other, Mild Steel (MS)

• Pillar
• Square Hollow Section MS Pillars

• Product Type
• Portable Cabin

• Roof Dead Load
• 0.45 kN/m

• Roof Live Load
• 0.60 kN/m

• Roof Material
• Corrugated/MS Sheet with Waterproof Coating

• Thickness
• 2mm MS Base Frame

• Thickness Of Wall Panel
• 50mm

• Use
• Other, Site Office, Temporary Accommodation, Storage

• Wall
• Insulated Mild Steel Sandwich Panel

• Wind Resistance
• High; up to 120 km/hr

• Window
• Other, 2 Sliding Windows

• Window Style
• Other, Aluminum Frame, Glass Pane

• Color
• Customized (Standard: Grey & Blue)

• Dimension (L*W*H)
• 12 x 20 x 8 feet

• Door
• Other, MS Door with lock (Single)

• Earthquake Intensity
• Designed for Zone III & IV

• Floor Load
• 200 kg/m

• Floor Material
• PVC Vinyl over 18mm Marine Ply

• Height
• 8 feet (standard)

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Square Pipes

• Product Type
• MS Portable Cabin

• Roof Dead Load
• Self-weight, approx. 50 kg/m

• Roof Live Load
• 150 kg/m

• Roof Material
• Corrugated MS Sheet (1.2mm)

• Thickness
• 1.2 mm (Wall & Roof Panels)

• Thickness Of Wall Panel
• 1.2 mm

• Use
• Other, Office, Site Office, Security Cabin

• Wall
• MS Sheet custom sandwich panels

• Wind Resistance
• 120 km/h

• Window
• Other, 2 units (sliding type)

• Window Style
• Other, Aluminum framed, sliding

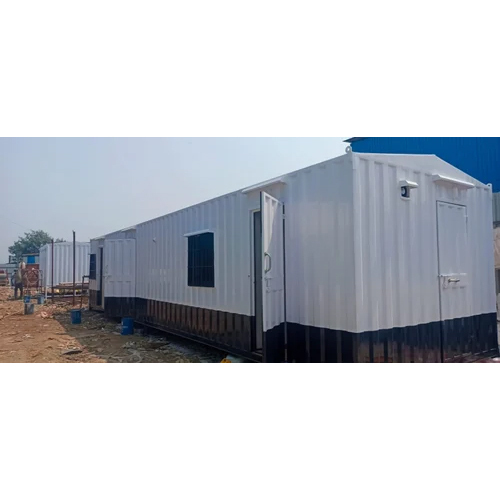

• Color
• Blue and White

• Dimension (L*W*H)
• 30 x 15 x 9 ft (L x W x H)

• Door
• Other, 1 no, Flush Door with MS Frame

• Earthquake Intensity
• Designed for Zone IV

• Floor Load
• 250 kg/m2

• Floor Material
• 18 mm Marine Ply with Vinyl Sheet

• Height
• 8.5 ft (internal)

• Length
• 30 ft

• Material
• Other, Mild Steel Frame with PUF insulated walls

• Pillar
• MS Square Tube Section

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 75 kg/m2

• Roof Live Load
• 150 kg/m2

• Roof Material
• Corrugated MS Sheet with PUF Insulation

• Thickness
• Overall 50 mm (Wall Panel)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Office, Security Cabin, Store, Accommodation

• Wall
• Sandwich PUF Panel

• Wind Resistance
• 150 km/h

• Window
• Other, 2 nos, Sliding type aluminium windows

• Window Style
• Other, Sliding

• Color
• Blue and White

• Dimension (L*W*H)
• 20x15x8.5 Feet

• Door
• Other, MS Door with Lock

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 250 kg/m2

• Floor Material
• Marine Ply with Vinyl Flooring

• Height
• 8.5 feet

• Length
• 20 feet

• Material
• Other, Mild Steel (MS)

• Pillar
• MS Box Section

• Product Type
• MS Portable Cabin

• Roof Dead Load
• 60 kg/m2

• Roof Live Load
• 150 kg/m2

• Roof Material
• Corrugated MS Sheet with Insulation

• Thickness
• 1.2 mm (MS Sheet)

• Thickness Of Wall Panel
• 50 mm

• Use
• Other, Site Office, Guard Room, Accommodation

• Wall
• Insulated Sandwich Panel

• Wind Resistance
• 110 km/h

• Window
• Other, 2 Sliding Windows

• Window Style
• Other, Aluminum Sliding

• Color
• Client Demand

• Dimension (L*W*H)
• 10'x20'x8'-6" Foot (ft)

• Door
• Steel

• Floor Load
• 2 Tonne

• Floor Material
• Cement Sheet

• Height
• 6'-8" Foot (ft)

• Length
• 20 Foot (ft)

• Material
• Container, Steel

• Product Type
• Portable Office Cabin

• Roof Material
• G.I. Plain Sheet

• Thickness
• 6 Inch

• Thickness Of Wall Panel
• 35 Inch

• Use
• Office, House

• Wall
• Corrugated sheet with MDF Board

• Window
• Alloy Aluminum

• Window Style
• Sliding Window
