20x40 Feet Modular Steel Portable Cabin

Get a Price/Quote

Product Details:

Thickness Steel Sheet: 1.20 mm
Dimension (L*W*H) 40 ft x 20 ft x 9 ft
Length 40 feet (12.2 m)
Height 9 feet (2.75 m)
Product Type Modular Steel Portable Cabin
Material Galvanized Steel
Roof Material Corrugated GI Sheet
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

20x40 Feet Modular Steel Portable Cabin Product Specifications

Pillar Structural steel column
Wall Insulated sandwich panel
Roof Live Load 1.5 kN/m2
Thickness Of Wall Panel 50 mm
Product Type Modular Steel Portable Cabin
Roof Material Corrugated GI Sheet
Color Light Grey & White
Thickness Steel Sheet: 1.20 mm
Window Aluminum sliding windows
Window Style Rectangular
Length 40 feet (12.2 m)
Dimension (L*W*H) 40 ft x 20 ft x 9 ft
Floor Material Heavy-duty marine ply with vinyl finishing
Roof Dead Load 0.5 kN/m2
Height 9 feet (2.75 m)
Earthquake Intensity Zone III compliant
Wind Resistance Designed to withstand wind speeds up to 120 km/h
Material Galvanized Steel
Floor Load 2.5 kN/m2
Door Flush Door with SS fittings
Use Office, Site Accommodation, Storage

Mobility Forklift pockets and lifting hooks for easy relocation
Structural Life Up to 25 years with proper maintenance
Frame Structure Welded steel frame with anti-rust treatment
Internal Finish Decorative laminated board
Insulation PU foam insulation in walls & roof
Electrical Fittings Pre-installed wiring, LED lighting, switches and sockets
Ceiling PVC false ceiling
Fire Resistance Fire retardant panels and wiring
External Finish Weather-resistant polyurethane paint
Floor Height Above Ground Minimum 150 mm plinth
Assembly Time Ready for use within 24 hours
Air Ventilation Provision of exhaust fans and air vents
Maintenance Minimal, rust proofrequires occasional cleaning
Waterproofing Double layer roof panel with silicone sealing

Product Description

Discover the splendiferous 20x40 Feet Modular Steel Portable Cabin-India's top-rated solution for office, site accommodation, and storage. With an astonishing welded steel frame treated against rust, PU foam insulation, fire-retardant panels, and weather-resistant finishes, this cabin is built for phenomenal durability and comfort. Enjoy the lowest price from a trusted supplier, manufacturer, distributor, and trader. Ready for use within 24 hours, it features plug-and-play electricals, mobility options, and a maintenance-friendly design. Order now for peace of mind and unmatched performance!

Versatile Modular Cabin: Features & Usage Types

This 20x40 feet modular cabin offers a remarkable blend of utility and safety with earthquake Zone III compliance, wind resistance up to 120 km/h, and a 2.5 kN/m2 floor load. Its heavy-duty flooring and insulated sandwich panels enhance functionality for offices, site accommodations, or secure storage. Splendid design choices such as aluminum sliding windows and decorative boards create an inviting and ergonomic workspace. Reduce maintenance with rustproof materials-perfect for frequent relocators and busy work sites alike.

Domestic & International Availability: Ready to Ship

Serving the main domestic market across India, this portable cabin is always stock ready, ensuring rapid delivery from major FOB ports. For global buyers, express shipping options and efficient distribution channels guarantee swift handling to key export markets. With responsive support as a certified manufacturer, supplier, and trader, our cabins consistently meet international and Indian demand. Place your order today and experience fast, reliable fulfillment for your modular space requirements.

FAQ's of 20x40 Feet Modular Steel Portable Cabin:

Q: How quickly can the 20x40 Feet Modular Steel Portable Cabin be assembled and made operational?

A: The cabin is designed for rapid deployment and can be fully assembled and made operational within just 24 hours, ensuring minimal downtime at your location.

Q: What are the main advantages of the PU foam insulation used in the walls and roof?

A: PU foam insulation offers superior temperature control, keeps interiors comfortable in all seasons, and enhances energy efficiency by minimizing thermal loss.

Q: Where can this modular steel cabin be utilized most effectively?

A: It is ideally suited for use as an office, site accommodation, or secure storage unit at construction sites, industrial settings, remote locations, or event venues.

Q: What makes the cabin highly resistant to weather and environmental challenges?

A: The cabin features a weather-resistant polyurethane external finish, waterproof double-layer roof panels, anti-rust frame treatment, and wind resistance up to 120 km/h, making it robust against rain, wind, and extreme conditions.

Q: Is this portable cabin compliant with specific safety regulations?

A: Yes, it uses fire-retardant panels, wiring, and is engineered for Earthquake Zone III compliance, providing enhanced safety for occupants.

Q: What process is involved in relocating or reinstalling the portable cabin?

A: Forklift pockets and lifting hooks are integrated for easy mobility. Simply position the cabin at the desired site, secure the plinth height, and connect to power for immediate use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Modular Steel Portable Cabin' category

10x40 Feet Modular Steel Portable Cabin Earthquake Intensity : Zone IV compliant Height : 9.5 Feet Material : Other, Mild Steel Wind Resistance : 140 km/h Length : 40 Feet Roof Dead Load : 15 kg/m Floor Material : 18mm marine plywood over steel frame Dimension (L*W*H) : 40x10x9.5 Feet Use : Other, Office, Store, Security Cabin Floor Load : 250 kg/m Door : Other, Steel door with lock Roof Material : Corrugated steel sheet Color : White and Blue Roof Live Load : 50 kg/m Wall : Sandwich panel walls Pillar : Standard steel pillar Thickness Of Wall Panel : 50 mm Product Type : Modular Steel Portable Cabin Window Style : Other, Sliding aluminum windows with glass Thickness : 1.2 mm steel frame Window : Other, 2

Send Inquiry

10x20 Feet Modular Steel Portable Cabin Earthquake Intensity : Zone IV compliant Height : 8 feet Material : Other, Mild Steel Wind Resistance : 180 km/h Length : 20 feet Roof Dead Load : 50 kg/m2 Floor Material : 18 mm Marine Plywood with Vinyl Flooring Dimension (L*W*H) : 10 ft x 20 ft x 8 ft Use : Other, Office, Site Cabin, Guard Room, Accommodation Floor Load : 250 kg/m2 Door : Other, Flush Door with MS Frame Roof Material : Corrugated Galvanized Steel Sheet Color : Off White with Blue Trim Roof Live Load : 100 kg/m2 Wall : Insulated Sandwich Panel Pillar : MS Square Tubular Section Thickness Of Wall Panel : 50 mm Product Type : Modular Steel Portable Cabin Window Style : Other, Sliding Thickness : 1.2 mm (MS sheet) Window : 2, Other

Send Inquiry

10x20 Feet Modular Steel Portable Cabin Earthquake Intensity : Zone IV Compatible Height : 8 feet (2.44 m) Material : Steel Wind Resistance : 180 km/hr Length : 20 feet (6.1 m) Roof Dead Load : 50 kg/m Floor Material : 18 mm Cement Fibre Board with Vinyl Flooring Dimension (L*W*H) : 10 x 20 x 8 feet (3.05 x 6.1 x 2.44 m) Use : Other, Office, Security Cabin, Site Office, Temporary Shelter Floor Load : 200 kg/m Door : Other, 1 (Steel, Hinged) Roof Material : Corrugated Steel Sheet with Insulation Color : White/Grey with Blue Trim Roof Live Load : 100 kg/m Wall : Insulated Sandwich Panel Pillar : Mild Steel (MS) Tube Structural Frame Thickness Of Wall Panel : 50 mm Product Type : Modular Steel Portable Cabin Window Style : Other, Sliding Thickness : 1.2 mm2 mm (Steel Frame & Sheet) Window : Other, 2 (Sliding, Aluminium Frame)

Send Inquiry

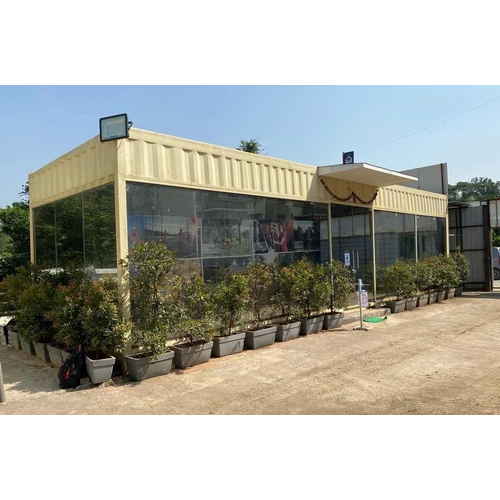

15X18 Feet Modular Steel Portable Cabin Earthquake Intensity : Designed for Zone IV & V Height : 8.5 Feet Material : Other, Mild Steel (MS) Frame with PUF Panels Wind Resistance : Up to 180 km/h Length : 18 Feet Roof Dead Load : 0.35 KN/m Floor Material : Vinyl Flooring over MS Sheet Base Dimension (L*W*H) : 18 x 15 x 8.5 Feet Use : Other, Office, Security Cabin, Site Office Floor Load : 3.5 KN/m Door : Other, MS Door with Lock Roof Material : PreCoated Galvanized Iron Sheet Color : White with Blue Edges Roof Live Load : 0.75 KN/m Wall : Insulated PU Sandwich Panel Pillar : HeavyDuty Steel Pillars Thickness Of Wall Panel : 50 mm Product Type : Modular Steel Portable Cabin Window Style : Other, Sliding Thickness : 1.2 mm Thickness Steel Sheets Window : Other, Aluminum Sliding Windows
