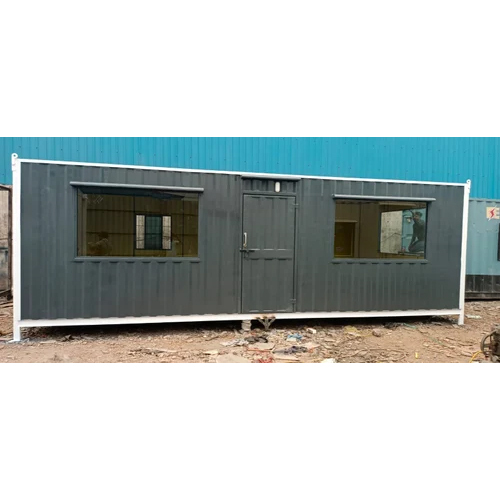

10x40 Feet GI Portable Cabin

Get a Price/Quote

Product Details:

Length 40 feet (12.19 m)
Dimension (L*W*H) 10x40x8.5 feet (3.05x12.19x2.59 m)
Height 8.5 feet (approx 2.59 m)
Thickness Container: 1.2 mm; Wall Panel: 50 mm
Product Type GI Portable Cabin
Material Galvanized Iron (GI)
Roof Material 0.6 mm Corrugated GI Sheet
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

10x40 Feet GI Portable Cabin Product Specifications

Thickness Of Wall Panel 50 mm
Window Style Horizontal Sliding
Length 40 feet (12.19 m)
Height 8.5 feet (approx 2.59 m)
Roof Material 0.6 mm Corrugated GI Sheet
Color Light Grey/Blue/As per requirement
Material Galvanized Iron (GI)
Product Type GI Portable Cabin
Use Site Office, Accommodation, Security Cabin, Store, Toilet, Canteen
Wall Insulated GI Panels
Dimension (L*W*H) 10x40x8.5 feet (3.05x12.19x2.59 m)
Door Flush Door/GI Panel Door
Window Sliding Aluminium Windows
Thickness Container: 1.2 mm; Wall Panel: 50 mm
Earthquake Intensity Zone IV (As per IS code)
Floor Material 18 mm Cement Board with Vinyl/Mat finish
Roof Live Load 1.5 kN/m
Floor Load 250 kg/m
Pillar GI Square/Tubular Steel Section
Roof Dead Load 0.5 kN/m
Wind Resistance 150 km/h

Maintenance Low; Easy Clean Smooth Surfaces
Exterior Finish Weatherproof Paint on GI
Customizability Yes, as per client specifications
Power Supply Single or Three Phase (On Requirement)
Accessories Air Ventilators, Electrical Panel, LED Lighting, Plug Points
No. of Windows 4
Fire Resistance Yes (Dependent on Insulation Type)
Wall Paint Epoxy / Synthetic Enamel
Mobility Portable with Forklift Pockets and Lifting Hooks
Interior Finish Prelaminated Board / Decorative Laminate
Insulation Type PUF / Glass Wool / Rock Wool
Structural Frame Mild Steel (MS) Welded Frame
No. of Doors 2
Ceiling Pre-painted GI Sheet with Insulation
Life Span 10-15 years (With Care)
Electrical Fittings Standard Modular Switches, LED Tube Lights, MCB and Power Sockets
Assembly Type Factory Assembled, Ready to Use

Product Description

Discover the sought-after 10x40 Feet GI Portable Cabin-an exceptional solution for flexible site requirements across India. Factory-assembled and ready to use, this incomparable cabin boasts a scarce blend of insulating options: PUF, Glass Wool, or Rock Wool. Electrical fittings feature modular switches and LED lighting. Exterior surfaces are protected by weatherproof paint, with interiors elegantly finished in decorative laminates. Engineered for mobility with forklift pockets and lifting hooks, this durable cabin stands out for its low maintenance, robust galvanised iron structure, and customizable features. Order now and redeem the benefits of unmatched efficiency for site offices, accommodation, or storage.

Advantage, Materials, and Application

Experience reliable protection and mobility with the 10x40 Feet GI Portable Cabin. Crafted from high-quality galvanized iron (GI), the structure is strengthened with MS welded frames and insulated GI panels for effective thermal regulation. The versatile application surface suits site offices, accommodation, stores, toilettes, or canteens, making it incredibly adaptable. Its portable design ensures easy relocation, while weatherproof finishes and construction guarantee longevity, even in challenging environments. Exceptional floor and roof load capacities further enhance functionality.

Export Markets, Payment Methods, and Sample Policy

Renowned across international markets, the 10x40 Feet GI Portable Cabin is available for shipment to several countries. Competitive sale price and flexible payment terms-such as advance or Letter of Credit-ensure a smooth order completion process. Clients may request samples upon enquiry, subject to policy and availability. Our streamlined logistics and quick response times make us a reliable choice for distributors, manufacturers, suppliers, or traders looking for seamless delivery and support.

FAQ's of 10x40 Feet GI Portable Cabin:

Q: How can I order a 10x40 Feet GI Portable Cabin?

A: To order, contact us directly with your requirements. Our team will guide you through the customization options, finalize specifications, and manage the booking and manufacture process.

Q: What insulation types are available for these portable cabins?

A: You can select from PUF, Glass Wool, or Rock Wool insulation types, allowing for optimal thermal protection depending on your climate and application needs.

Q: When is the cabin ready to use after delivery?

A: The 10x40 Feet GI Portable Cabin is factory-assembled and arrives ready to use, requiring minimal setup at the site for immediate deployment.

Q: Where can these cabins be installed or used?

A: These portable cabins are commonly installed at construction sites, factories, remote locations, and events as offices, accommodations, security booths, canteens, stores, or toilets.

Q: What is the process for customizing the cabin according to my needs?

A: Share your preferred specifications (size, color, fittings, etc.) when placing your order. Our team will incorporate your selections during fabrication and assembly.

Q: How does the cabin benefit me in terms of mobility and durability?

A: The portable design with forklift pockets and lifting hooks allows easy repositioning, while the weatherproof finish and galvanized iron structure ensures longevity and robust protection.
